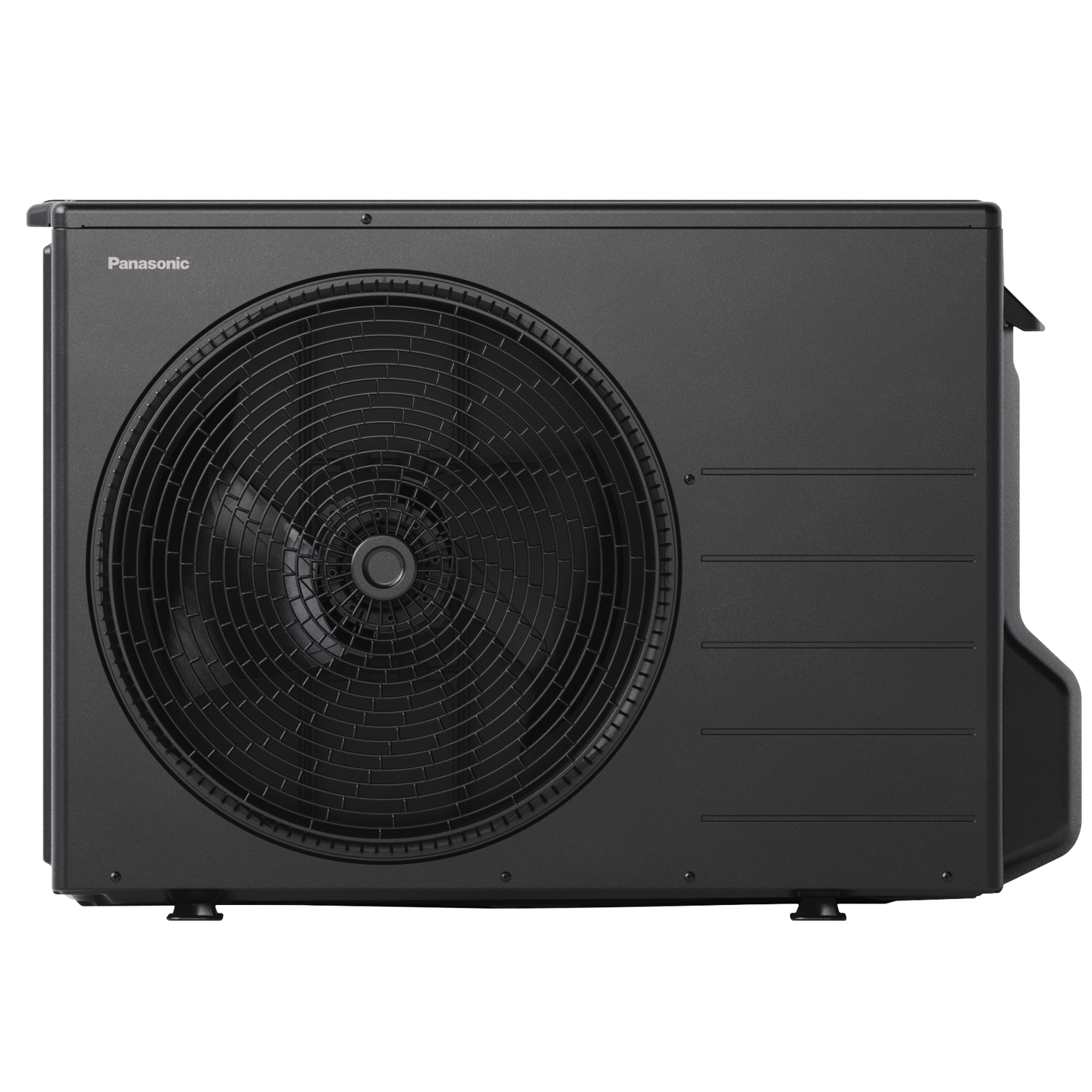

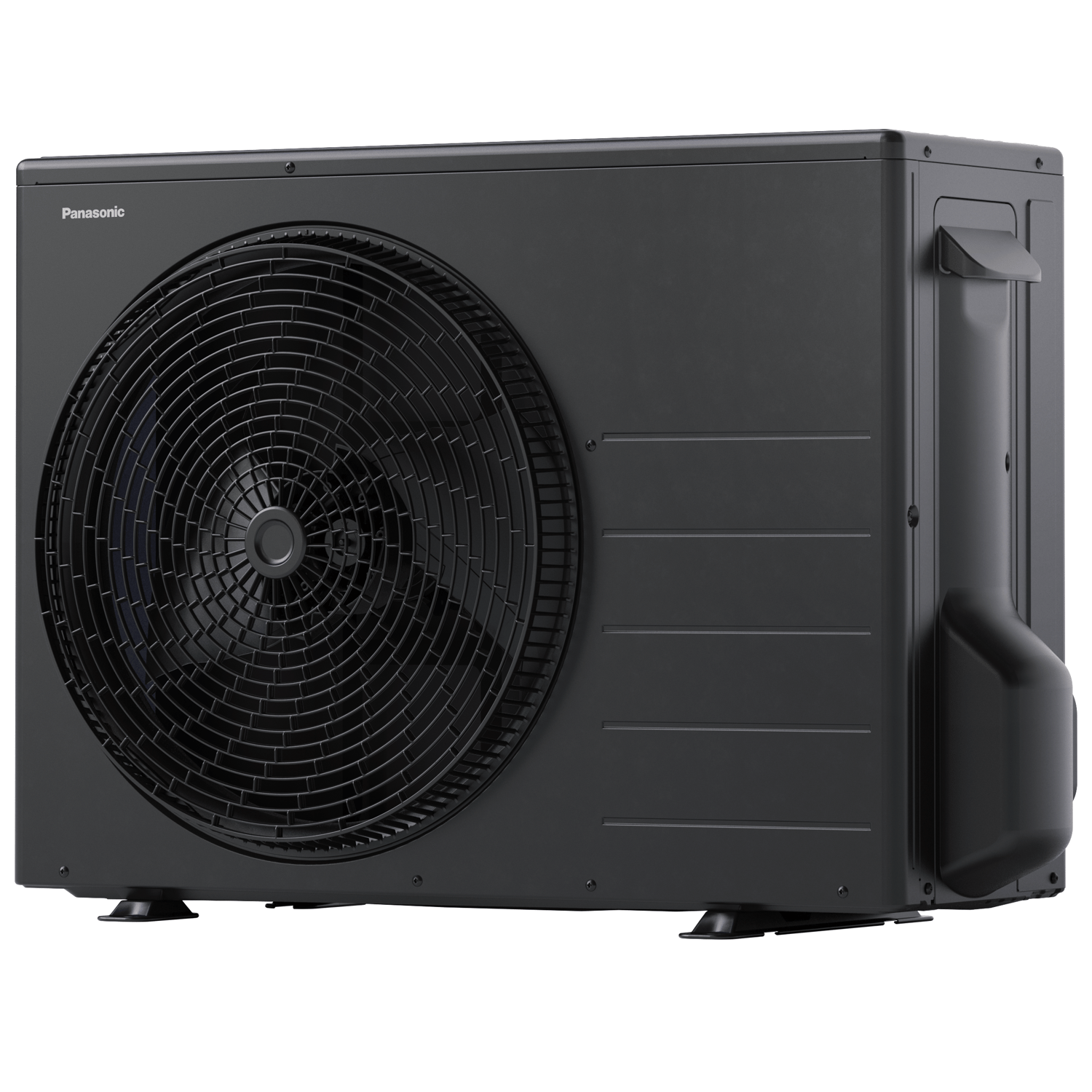

Panasonic 3kW (R32) K-gen Aquarea outdoor unit

Panasonic All-in-One 3kW (Aquarea K-gen) buitendeel WH-UDZ03KE5.png
Article number:
WH-UDZ03KE5
  • Delivery time:

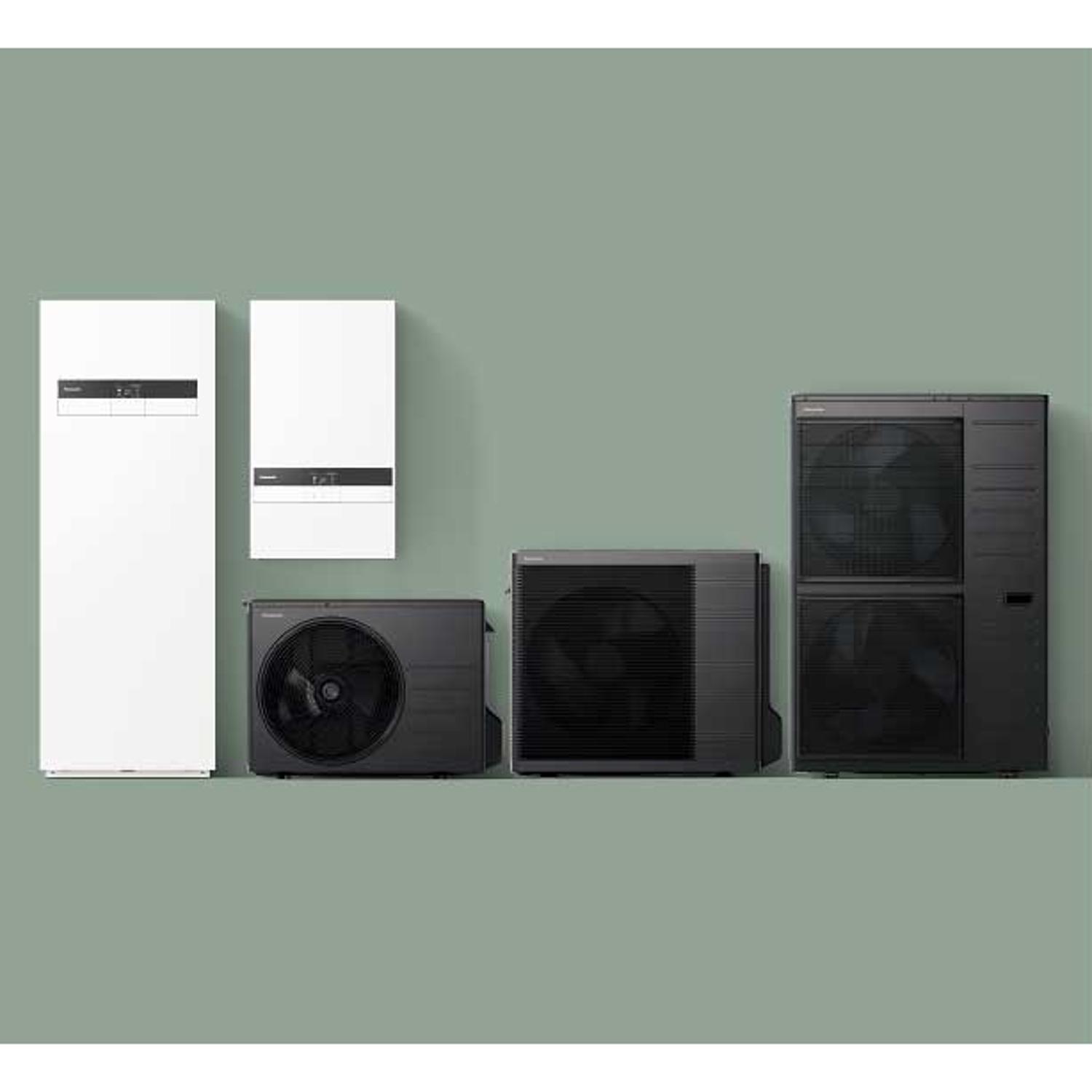

The Panasonic Aquarea K-series heat pumps, with capacities ranging from 3 to 9 kW, are designed for both new construction and renovations. They use the environmentally friendly R32 refrigerant, ensuring high energy efficiency and low CO2 emissions. The compact indoor units simplify the installation process. The series is robust, operates reliably in various weather conditions, and supports the Aquarea Smart Cloud for easy remote management, making it ideal for installers.

Don't forget to order the indoor unit and necessary components
This outdoor unit requires an indoor unit. Refer to the 'Related' section to select a matching indoor unit. If you combine this outdoor unit with an All-in-One indoor unit, it is the KIT-ADC03K3E5. In combination with a Bi-Bloc indoor unit, it becomes the KIT-WC03K3E5. To remotely access the heat pump, we recommend ordering the Smart Cloud adapter, which can also be found under the 'Related' tab.

Request a quote without obligation
If you have a larger project or are unsure about the required products, we kindly request you to ask for a quote from us. This is entirely non-binding. Fill in your details and specific requirements, after which our team will contact you to create a detailed custom quote. This will provide you with all the necessary information to make an informed choice. We have prepared a form to make your request as easy as possible. View it here the quote request form.

Do you have a question or need advice? Our advisors are ready to help
Heat pumps, and related products, are technical and sometimes complex. In addition, each application is unique. 'Difficult situations' for the application of heat pumps can arise in existing buildings or in new construction projects (noise, space, appearance). That's why we're happy to think along with you. Refer to the 'Downloads' section for brochures and other documentation. If your question has not been answered yet, please contact us via phone, email, or the contact form.

Brand Panasonic
Product line Aquarea
Product code WH-UDZ03KE5
Compatible with All-in-One / Bi-Bloc
Component Outdoor unit
Type of heat pump Air/water
Generation K (R32)
T-CAP variant No
Product class (ETIM) EC012035
Heating power A +7°C / W 35°C (AiO) 3,20 kW / 5,33 COP
Heating capacity A +7°C / W 55°C (AiO) 3,2 kW / 2,81 COP
Heating power A +2°C / W 35°C (AiO) 3,2 kW / 3,64 COP
Heating power A +2°C / W 55°C (AiO) 3,2 kW / 2,19 COP
Heating power A -7°C / W 35°C (AiO) 3,3 kW / 2,8 COP
Heating power A -7°C / W 55°C (AiO) 3,2 kW / 1,79 COP
Cooling capacity A 35°C / W 7°C (AiO) 3,2 kW / 3,52 EER
Cooling capacity A 35°C / W 18°C (AiO) 3,2 kW / 4,71 EER
Heating power A +7°C / W 35°C (Bi-Bloc) 3,2 kW / 5,33 COP
Heating power A +7°C / W 55°C (Bi-Bloc) 3,2 kW / 2,81 COP
Heating power A +2°C / W 35°C (Bi-Bloc) 3,2 kW / 3,64 COP
Heating capacity A +2°C / W 55°C (BiBloc) 3,2 kW / 2,19 COP
Heating capacity A -7°C / W 35°C (Bi-Bloc) 3,2 kW / 5,33 COP
Heating capacity A -7°C / W 55°C (Bi-Bloc) 3,2 kW / 2,8 COP
Cooling capacity A 35°C / W 7°C (Bi-Bloc) 3,2 kW / 3,52 EER
Cooling capacity A 35°C / W 18°C (Bi-Bloc) 3,2 kW / 4,71 EER
Hot water tank ERP warm 154 n% / 3,86 COPdhw
Hot water tank ERP average 128 n% / 3,20 COPdhw
Hot water tank ERP cold 99 n% / 2,48 COPdhw
Energy class (warm conditions W 35°C / W 55°C) A++/A+++
Energy class (average conditions W 35°C / W 55°C) A+++/A++
Energy class (cold conditions W 35°C / W 55°C) A++/A+
Energy efficiency (warm conditions W 35°C / W 55°C) 6,20 / 4,20 SCOP
Energy efficiency (average conditions W 35°C / W 55°C) 5,07 / 3,47 SCOP
Energy efficiency (cold conditions W 35°C / W 55°C) 4,00 / 2,83 SCOP
Operational range backside -20 tot +35 °C
Operational range delivery side +25 to +60 °C
Operating range (heating) -20 tot +35 °C
Operating range (cooling) +10 to +43 °C
Sound power level outdoor unit (heating) 55 dB(A)
Maximum power backup heater 3 kW
Dimensions (h x w x d) 622 x 824 x 298 mm
Net weight of outdoor unit 37 kg
Refrigerant type (GWP) R32
Refrigerant quantity 0.9 kg
CO2 equivalent 0.608 T
Pipe diameter (liquid) (inch) 1/4 inch
Pipe diameter (liquid) (mm) 6.35 mm
Pipe diameter (gas) (inch) 1/2 inch
Pipe diameter (gas) (mm) 12.7 mm
Pipe length 3 ~ 25 m
Height difference (in/out) 20 m
Supply temperature (heating) 20 tot 60 °C
Supply temperature (cooling) 5 tot 20 °C
Power (exact) 3 kW
Nominal voltage (V) 230 V
Nominal voltage (Hz) 50 Hz
Nominal voltage (Phase) 1 Phase
Sound power level EN12102 (LWA) 58 dB(A)
Control CZNS4P
Control position Indoor unit
Compressor Rotary
Compressor drive Inverter DC
Fan Axial
Defrost Automatic
Backup element No
Zone valve Yes
Flow sensor (flowsensor) Yes
Pressure sensor in the heating system Yes
Circulation pump (secondary) No
Safety valve for heating system No
