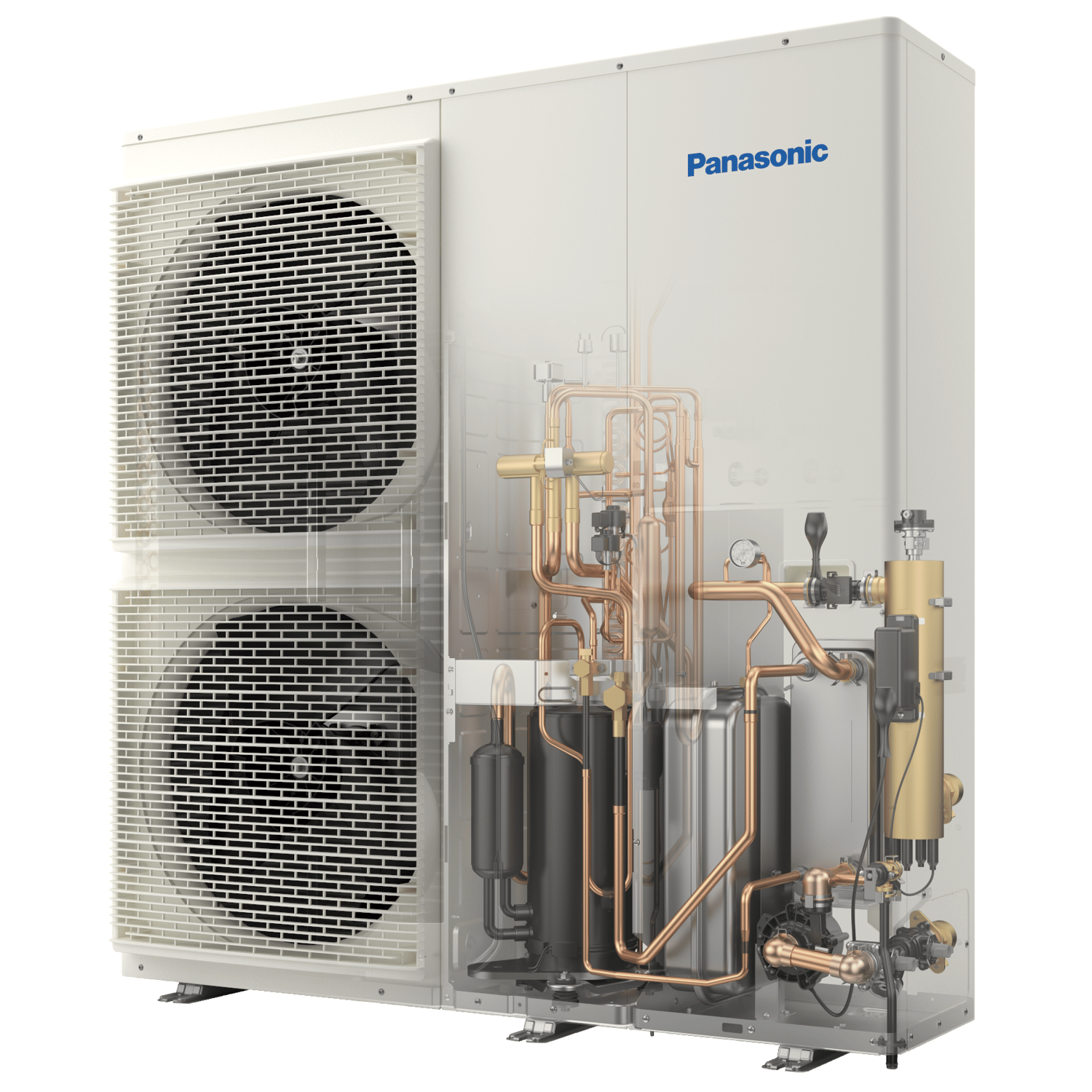

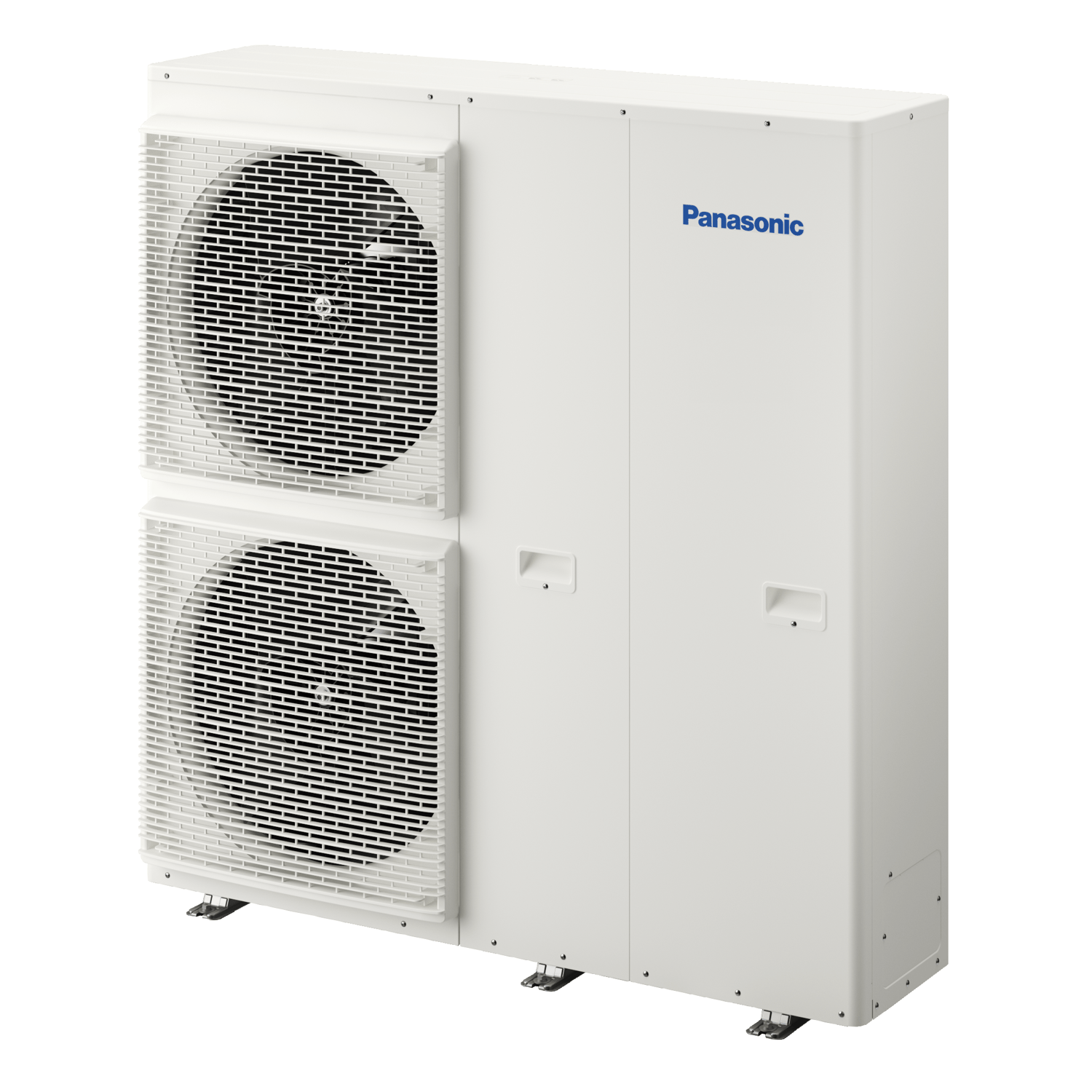

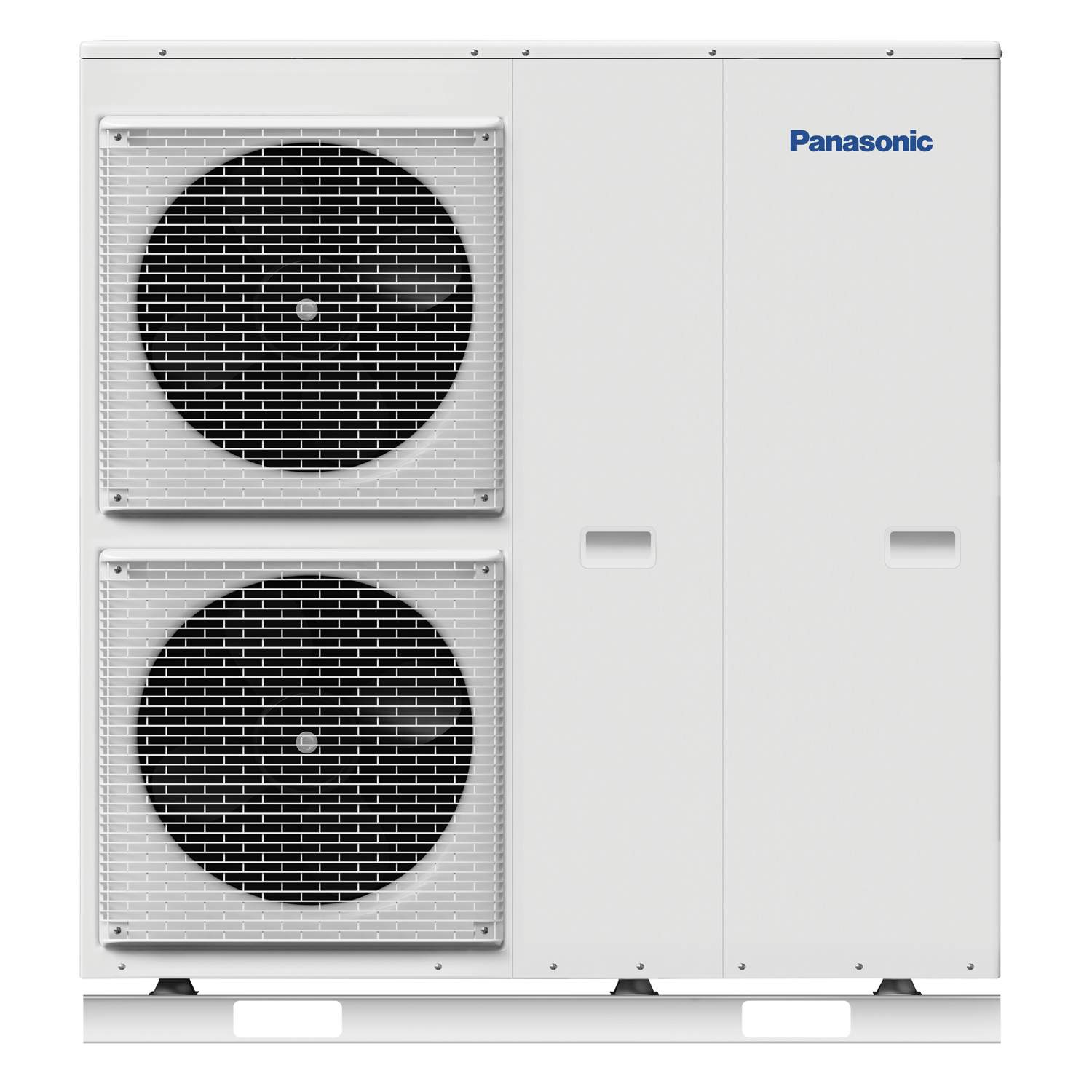

Panasonic 12kW T-CAP Super Quiet (R410A) H-gen Aquarea outdoor unit
The Panasonic Aquarea H-gen T-CAP super-quiet outdoor units, available in 9 to 16 kW versions, are designed for optimal performance and sound reduction, ideal for both new installations and renovation projects. This series is known for its T-CAP technology, guaranteeing full heating capacity even at very low outdoor temperatures, without additional electric heating. The efficient use of the environmentally friendly R410A refrigerant contributes to both energy savings and a reduction in CO2 emissions.
Don't forget to order the indoor unit and necessary components
This outdoor unit requires an indoor unit. Refer to the 'Related' section to select a matching indoor unit. In combination with an indoor unit, it becomes the KIT-WQC09H3E8. To remotely access the heat pump, we recommend ordering the Smart Cloud adapter, which can also be found under the 'Related' tab.
Request a quote without obligation
If you have a larger project or are unsure about the required products, we kindly request you to ask for a quote from us. This is entirely non-binding. Fill in your details and specific requirements, after which our team will contact you to create a detailed custom quote. This will provide you with all the necessary information to make an informed choice. We have prepared a form to make your request as easy as possible. View it here the quote request form.
Do you have a question or need advice? Our advisors are ready to help
Heat pumps, and related products, are technical and sometimes complex. In addition, each application is unique. 'Difficult situations' for the application of heat pumps can arise in existing buildings or in new construction projects (noise, space, appearance). That's why we're happy to think along with you. Refer to the 'Downloads' section for brochures and other documentation. If your question has not been answered yet, please contact us via phone, email, or the contact form.
| Brand | Panasonic |
| Product line | Aquarea |
| Product code | WH-UQ12HE8 |
| KIT number | KIT-WQC12H9E8 |
| Compatible with | Bi-Bloc (H-gen) |
| Component | Outdoor unit |
| Type of heat pump | Air/water |
| Generation | H (R410A) |
| T-CAP variant | Yes |
| Product class (ETIM) | EC012035 |
| Configuration | All-in-One / Bi-Bloc |
| Product line 2 | Aquearea |
| Energy class (average conditions W 35°C / W 55°C) | A++ / A++ |
| Cooling Capacity (A 35°C / W 18°C) | 10 kW / 5,13 EER |
| Sound power level outdoor unit (heating) | 33 dB(A) |
| Operating temperature | -28 tot +35 °C |
| Cooling capacity (A 35°C / W 7°C) | 10 kW / 2,81 EER |
| Heating capacity (A -7°C / W 35°C) | 12 kW / 2,73 COP |
| Heating capacity A +2°C / W 35°C | 12 kW / 4,74 COP |
| Heating capacity (A +2°C / W 55°C) | 12 kW / 2,19 COP |
| Heating capacity (A +7°C / W 35°C) | 12 kW / 3,44 COP |
| Heating capacity (A +7°C / W 55°C) | 12 kW / 2,88 COP |
| Heating capacity (A -7°C / W 55°C) | 12 kW / 1,92 COP |
| Dimensions (h x w x d) | 1410 x 1283 x 320 mm |
| Refrigerant quantity | 2.85 kg |
| CO2 equivalent | 5.951 TCO |
| Supply temperature (heating) | 25 tot 60 °C |
| Supply temperature (cooling) | 5 tot 20 °C |
| Power (exact) | 12 kW |
| Nominal voltage (Phase) | 3 Phase |
| Weight | 151 kg |
| Refrigerant type | R410A |
