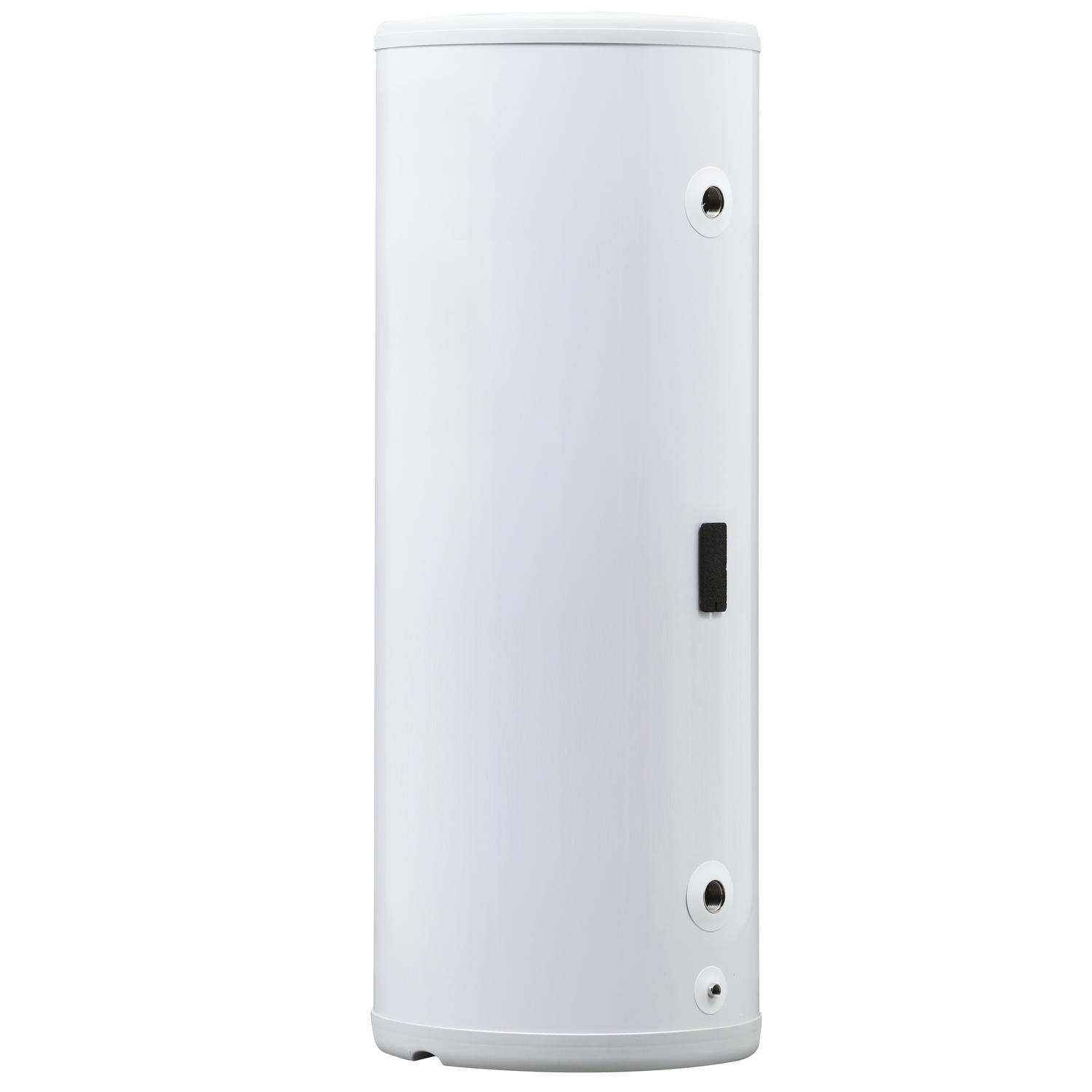

| Brand | Panasonic |
| Product code | PAW-BTANK100L |
| Suitable for heat pump | Yes |
| Energy class | C |
| Heat loss | 55 W |
| Maximum operating pressure | 3 bar |
| Storage volume (exact) | 100 L |
| Tank material | Stainless steel |
| Weight | 28 kg |
| Storage volume | 100 - 249 liter |
| With electric element | No |
| Height | 1175 mm |
| Surface protection | Coated |
| Mounting method | Standing |
| Diameter | 430 mm |
| Freight volume | 0,27 m3 |
| Recirculation connection | Yes |
| Number of temperature sensor connections | 1 |
| Plug connection | 1 inch inch |
| Temperature sensor connection | 6 and 8 mm mm |
| Venting connection | 1/2" BSPP vrouw |
| Flow/return above connection | 1" BSPP vrouw |
| Flow/return under connection | 1" BSPP vrouw |
| Drain connection | 1/4" BSPP vrouw |
| Manual | Yes (see also downloads tab) |
| Automatic venting | Yes |
| Drain tap | Yes |
| Bracket | Does not apply |
| Plug | Yes (brass with o-ring) |
